Readers and Modules
8-port Reader Module
· ASR-E404.2
Passive RFID temperature sensing product for industrial monitoring.
Buy Now
Key Features

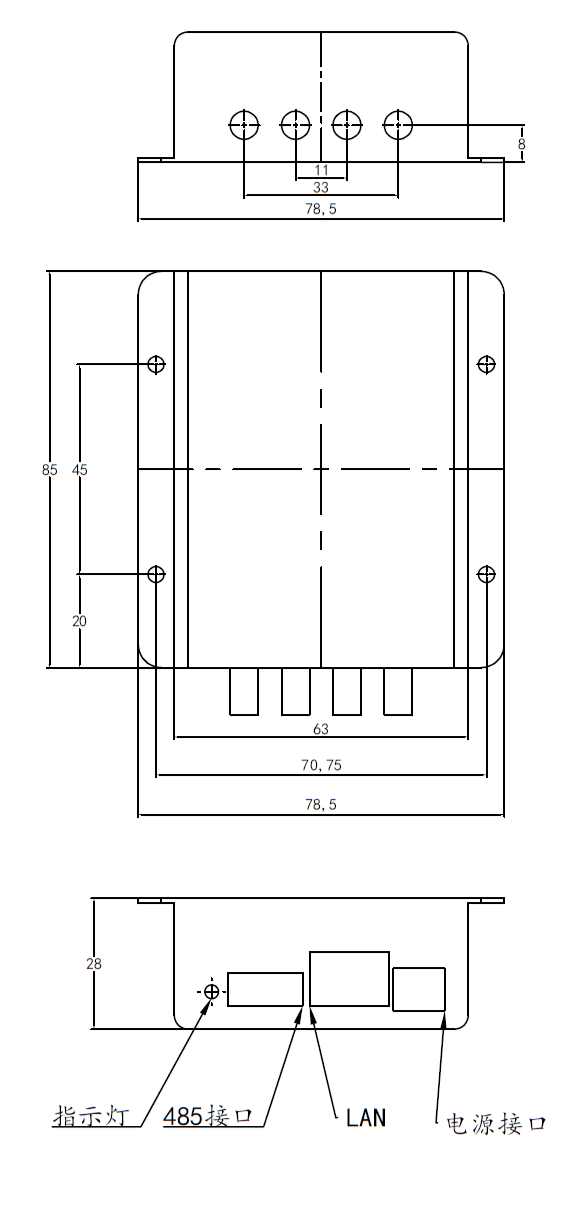

Dimensions
Absolute Maximum Ratings
| Parameter | Feature |
|---|---|
| VCC | 48 V |
| TOPR | -10～+55 ℃ |
| TSTR | -20～+75 ℃ |
Specifications
| Parameter | Feature |
|---|---|
| VCC | 9 - 48 V |
| IC | Max 1.2 A (Typical 0.5 A) |
| FREQ | 902 - 928 MHz (Typical 902~928 MHz) |
| PRF | 0 - 30 dBm |
| APRF | +/-1 dB |
| FPRF | +/-0.2 dB |

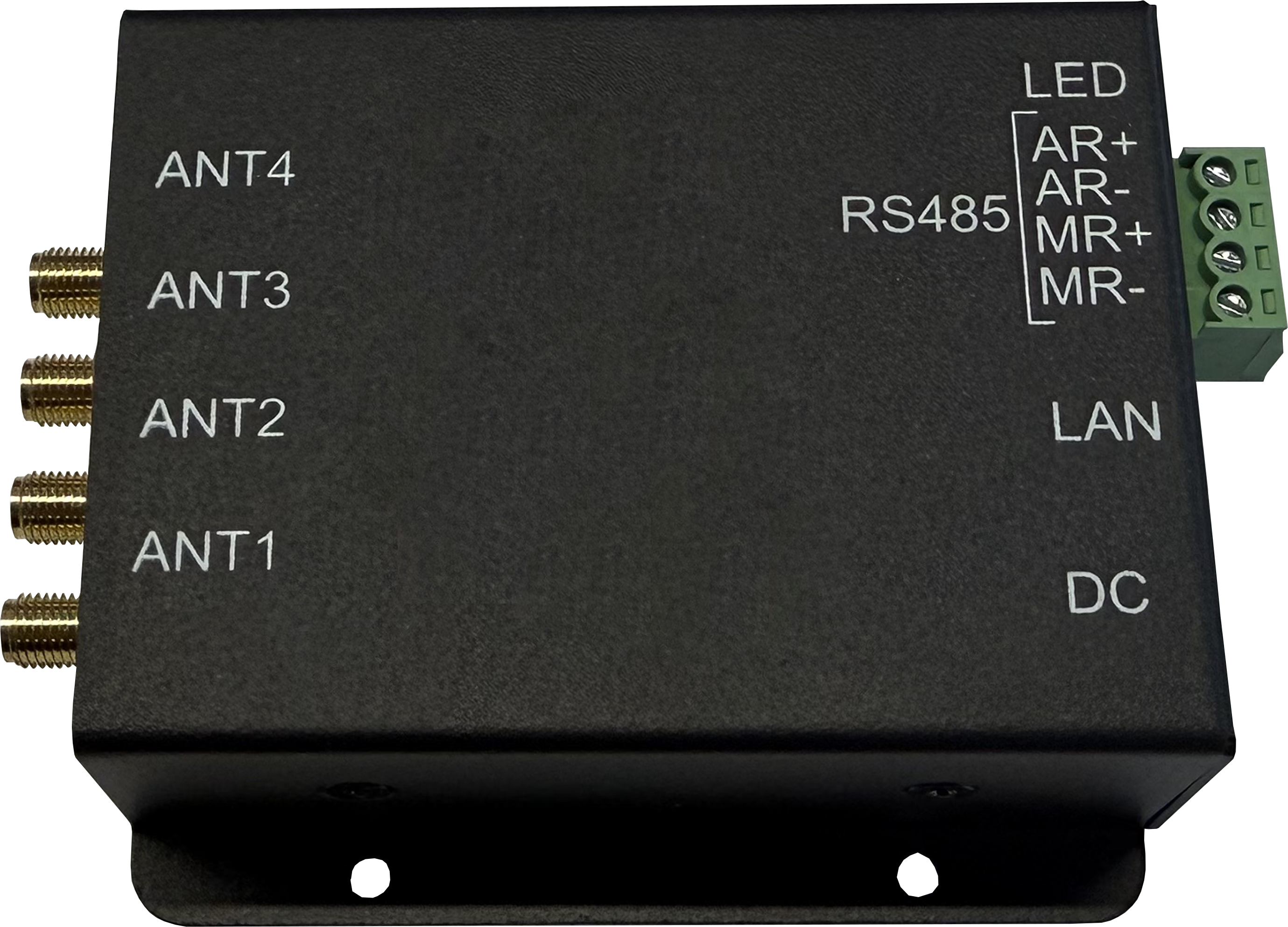

Interface Description
